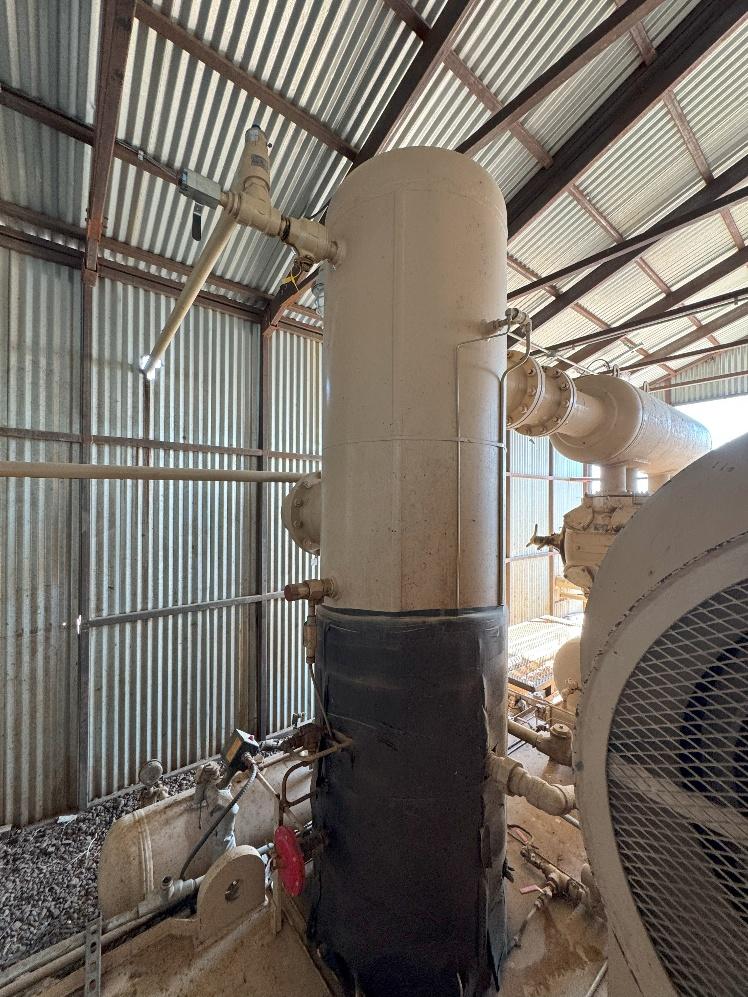

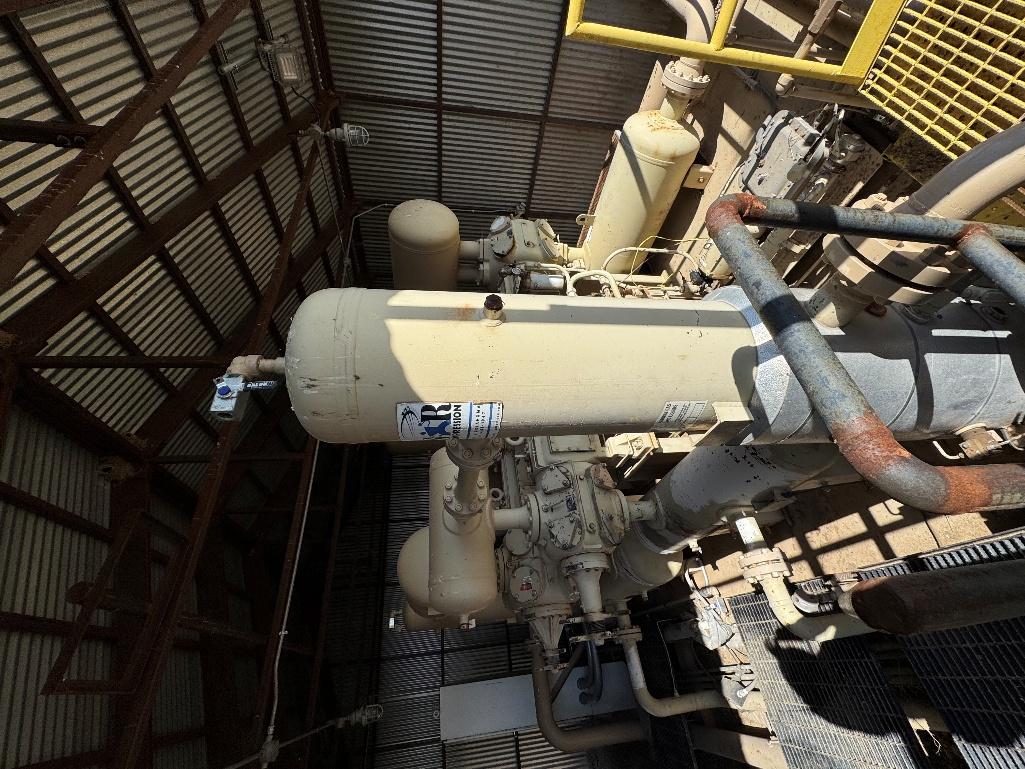

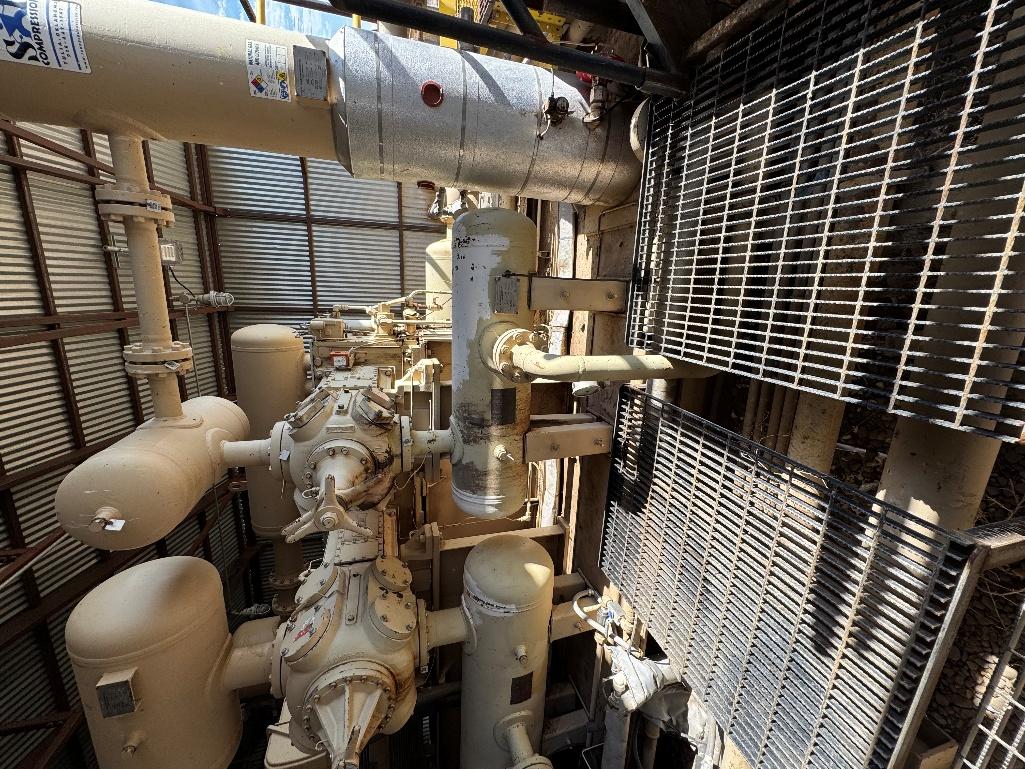

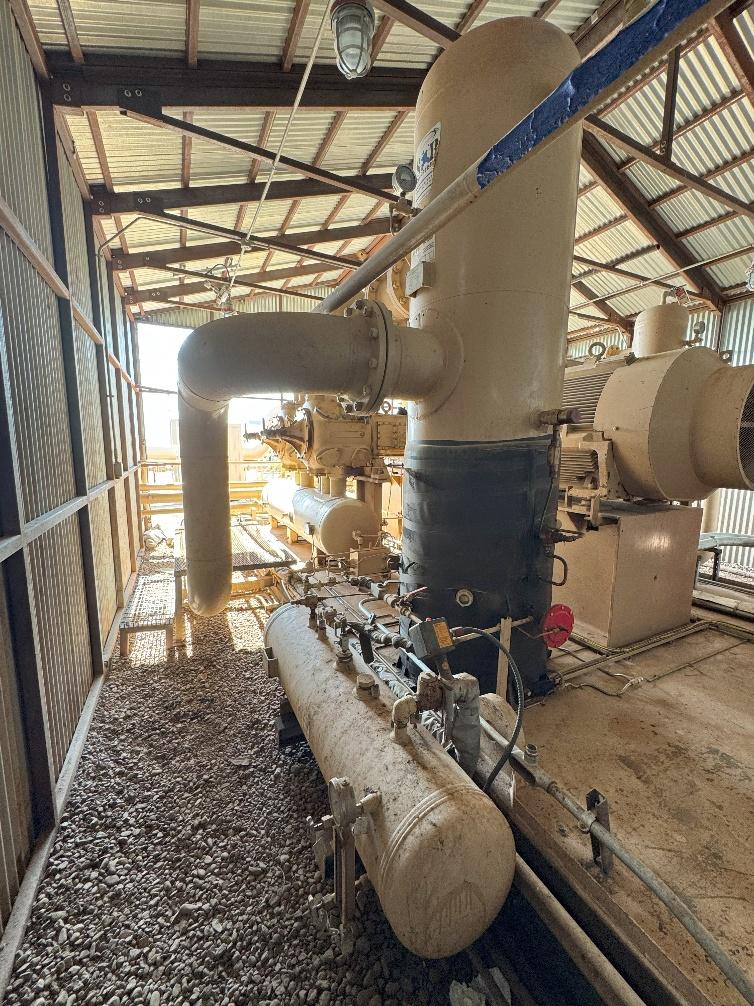

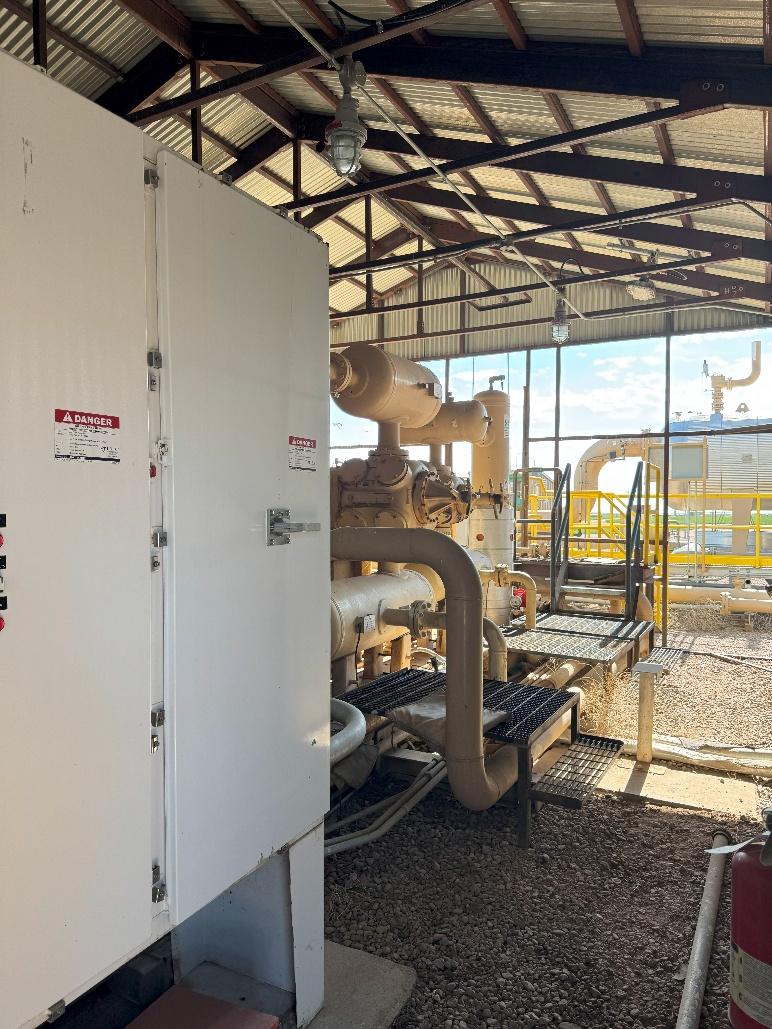

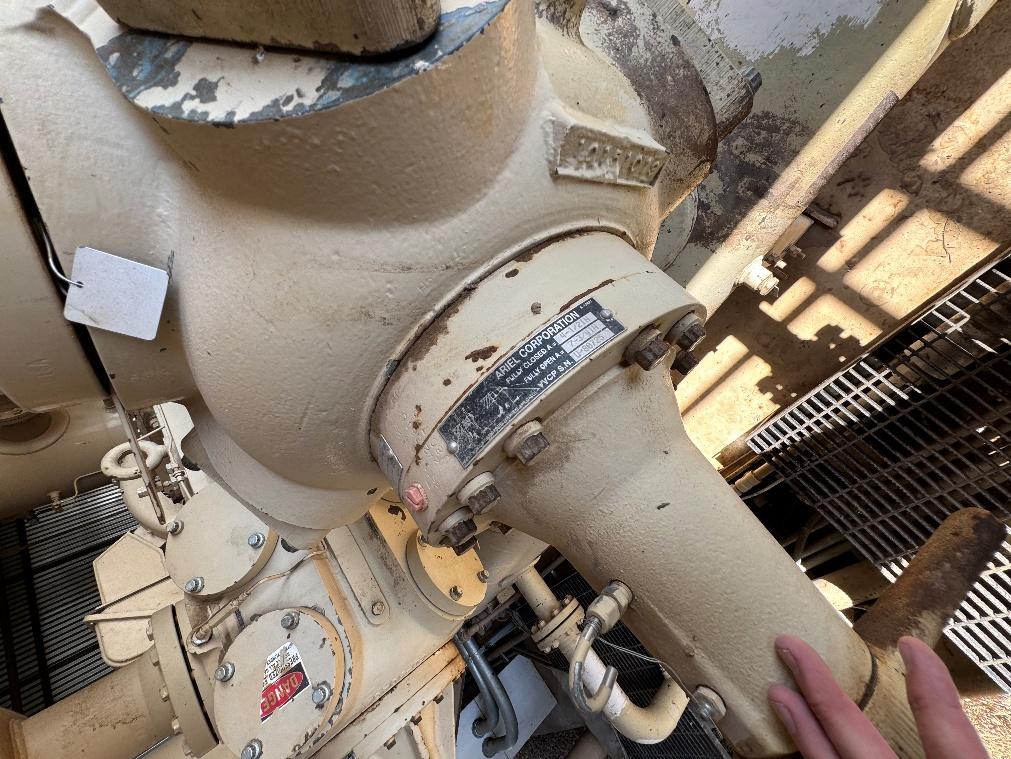

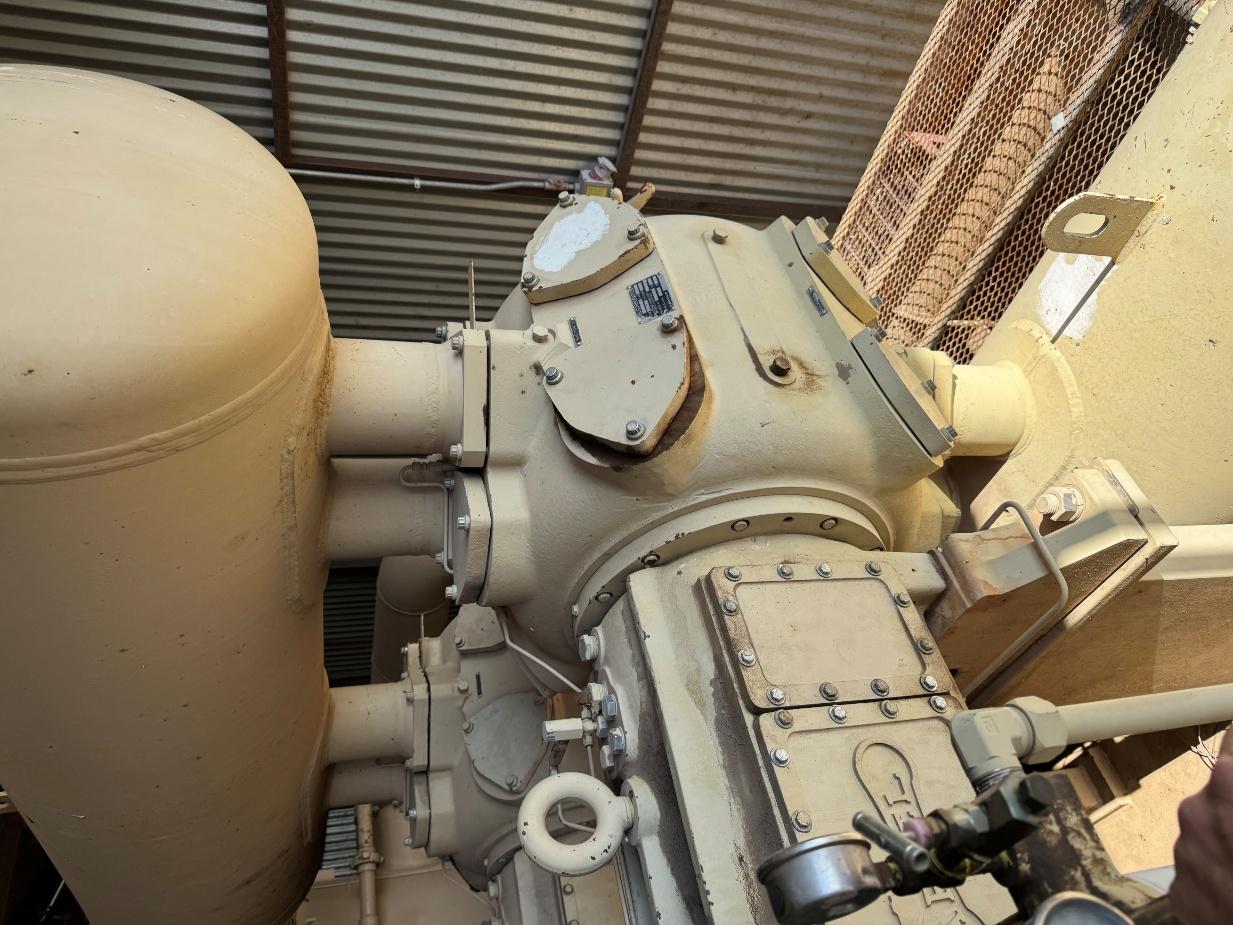

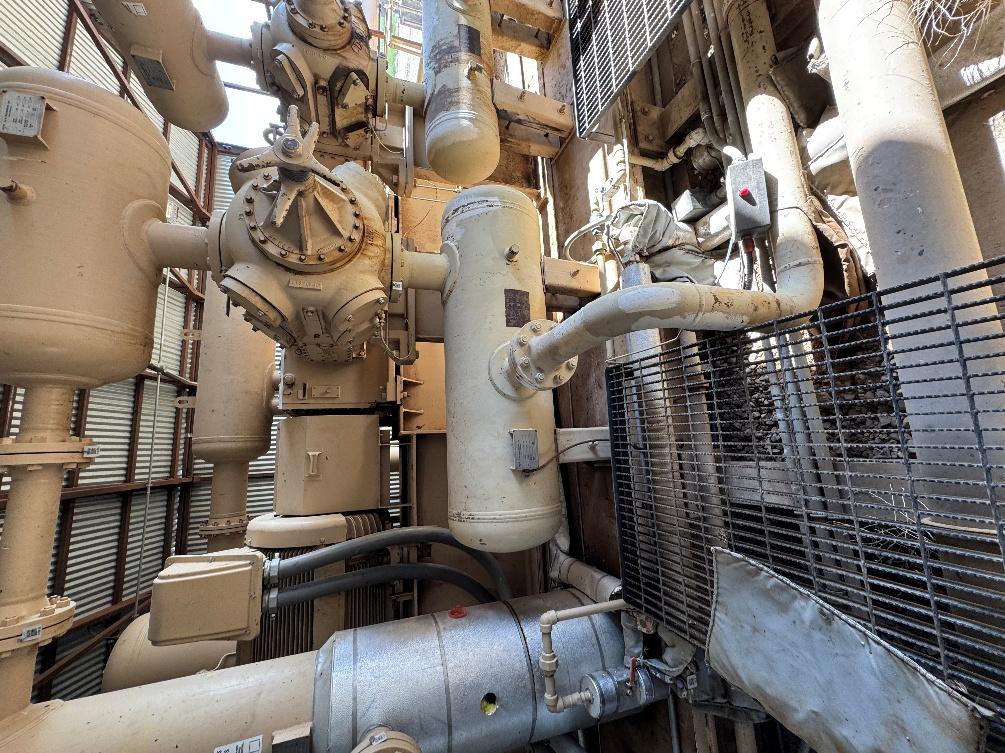

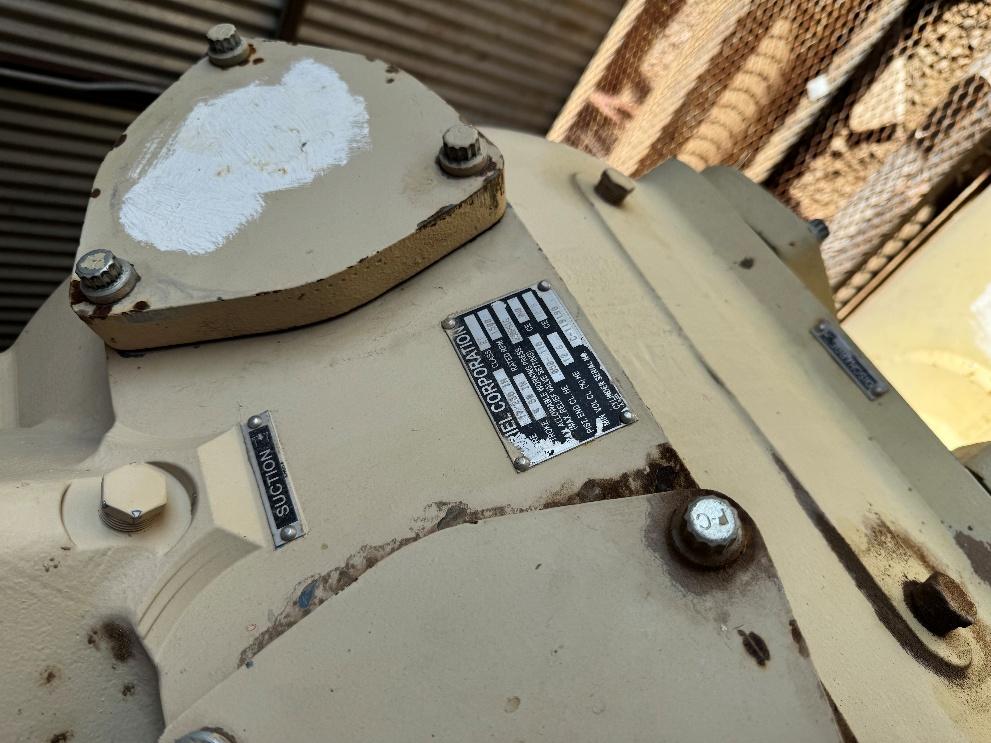

INLET COMPRESSOR- ARIEL JGH/4-3 STAGE
Product Detail:
Description:
INLET COMPRESSOR-ARIEL JGH/4- 3 STAGE
| STYLE | JGH/4-3 | MFG | ARIEL |
| SN | F-49290 | STROKE | 4.50 |
| TYPE | JGT/4-3STAGE | RPM | 1.200 |

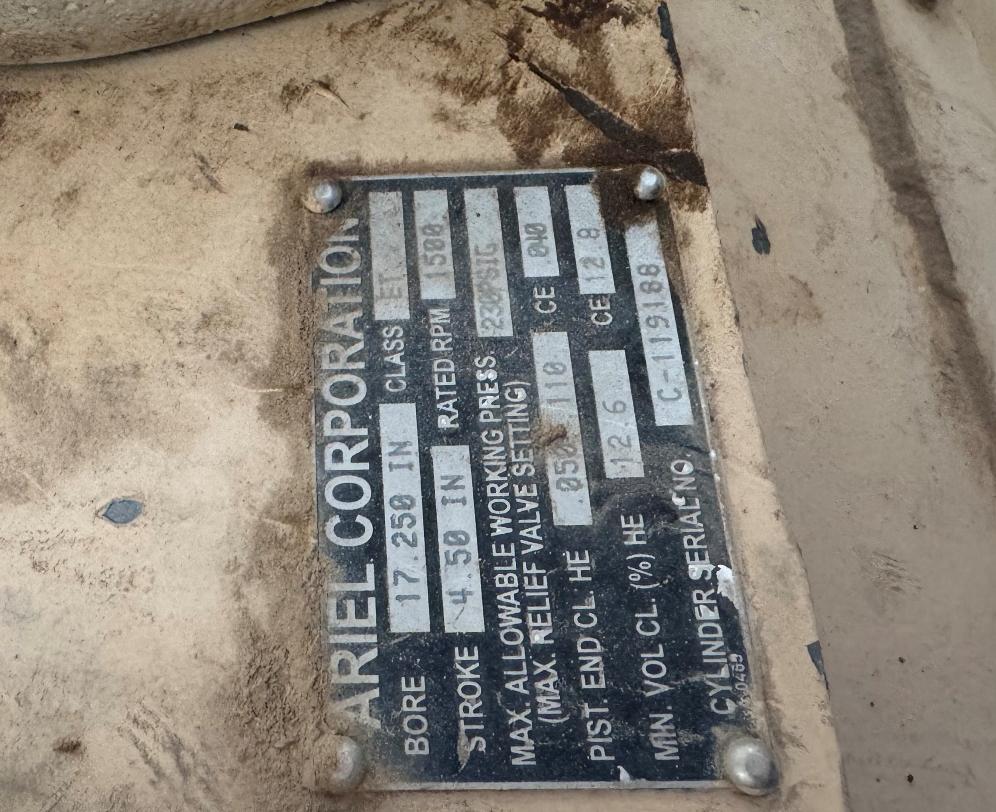

CYLINDER1& 2:
| BORE | 17.250 | MODEL | 17-1/4ET |
| CLASS | ET | MAWP | 230PSIG |
CYLINDER 3:
| BORE | 12.250 | MODEL | 12-1/4ET |
| CLASS | ET | MAWP | 635PSIG |
CYLINDER 4:
| BORE | 7.375 | MODEL | 7-3/8ET |
| CLASS | ET | MAWP | 1135PSIG |
Documents:
- Sales Sheet
- Certifications
- Testing Reports
- Material Lists
- Engineering Drawings
